Features:

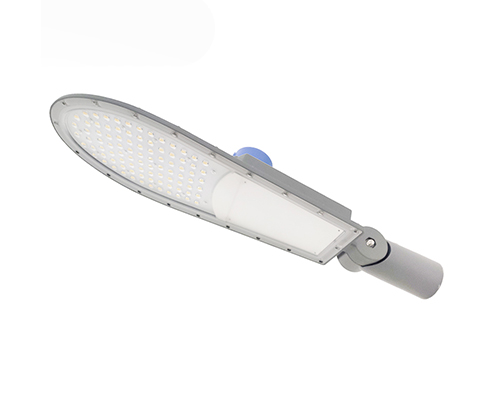

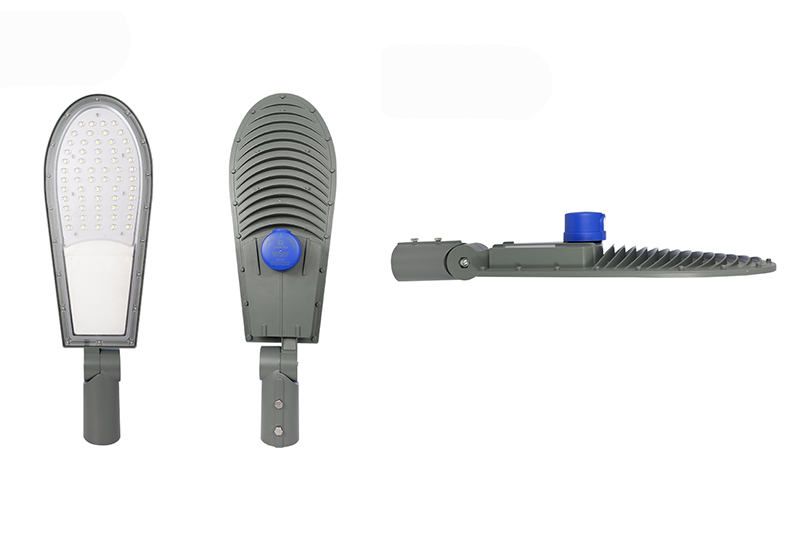

Thelux LED street light fixtures
bring roadway and parking area illumination into the 21st century. Our patented
optics maximize light distribution and placement with exceptional, low-glare
illumination on the intended area, while minimizing light trespass into nearby
homes and businesses.
1.Die casting -aluminium housing
with corrosion resistant and rust resistant power coated finish. And with IP66
protection, they can work fine in terrible outdoor environments.
2.Adjustable angle bracket, easy to find a suitable mounting angle.
3. High lumen 3030or 5050LED chip of Philips, OSRAM, CREE, BRIDGELUX, and
Epistar. No UV or infrared. Higher light efficiency and more stable.
Technical Specifications:
| Mod No. | Voltage | Power | Size | Efficency | CRI | Beam angle | Light Source | Driver | CCT | ||
| V | W | mm | lm/W | Ra≥ | ° | type | Chip QTY | Isolate | PF＞ | K | |
| TSL-R009/50 | AC85-265V | 50 | 560*230*45 | 140-150 | 70 | 70*140 | 5050 | 60 PCS | Isolated | 0.9 | 2700-7000 |
| TSL-R009/100 | AC85-265V | 100 | 670*215*80 | 140-150 | 70 | 70*140 | 5050 | 120 PCS | Isolated | 0.9 | 2700-7000 |
| TSL-R009/150 | AC85-265V | 150 | 725*240*75 | 140-150 | 70 | 70*140 | 5050 | 180 PCS | Isolated | 0.9 | 2700-7000 |
