Features:

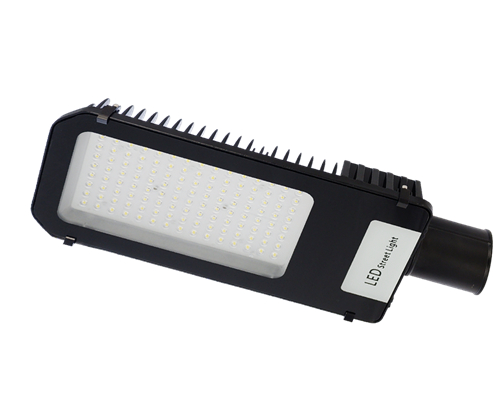

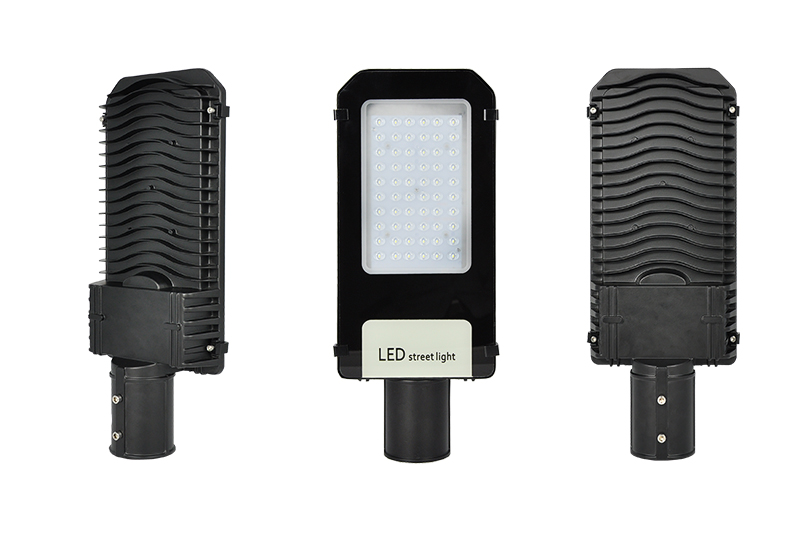

Thelux LED street light fixtures
bring roadway and parking area illumination into the 21st century. Our patented
optics maximize light distribution and placement with exceptional, low-glare
illumination on the intended area, while minimizing light trespass into nearby
homes and businesses.
1.Die casting -aluminium housing
with corrosion resistant and rust resistant power coated finish. And with IP66
protection, they can work fine in terrible outdoor environments.
2.Adjustable angle bracket, easy to find a suitable mounting
angle.
3. High lumen 3030or 5050LED chip of Philips, OSRAM, CREE,
BRIDGELUX, and Epistar. No UV or infrared. Higher light efficiency and more
stable.
Technical Specifications:
Mod No. | Voltage | Power | Size | Efficency | CRI | Beam angle | Light Source | Driver | CCT | ||
V | W | mm | lm/W | Ra≥ | ° | type | Chip QTY | Isolate | PF> | K | |
TSL-R002/30 | AC85-265V | 30 | 278*130*63 | 100-110 | 70 | 70*140 | 3030 | 40 PCS | isolated | 0.6 | 2700-7000 |
TSL-R002/50 | AC85-265V | 50 | 425*173*75 | 100-110 | 70 | 70*140 | 3030 | 60 PCS | isolated | 0.6 | 2700-7000 |
TSL-R002/100 | AC85-265V | 100 | 506*212*72.5 | 100-110 | 70 | 70*140 | 3030 | 120 PCS | isolated | 0.6 | 2700-7000 |
TSL-R002/150 | AC85-265V | 150 | 602*227*77.5 | 100-110 | 70 | 70*140 | 3030 | 180 PCS | isolated | 0.6 | 2700-7000 |
TSL-R002/200 | AC85-265V | 200 | 656*242*72 | 100-110 | 70 | 70*140 | 3030 | 240 PCS | isolated | 0.6 | 2700-7000 |
TSL-R002/250 | AC85-265V | 250 | 816*301*81.5 | 100-110 | 70 | 70*140 | 3030 | 300 PCS | isolated | 0.6 | 2700-7000 |
