Features:
Thelux
LED Flood light fixtures bring parking area illumination into the 21st century.
Our patented optics maximize light distribution and placement with exceptional,
low-glare illumination on the intended area, while minimizing light trespass
into nearby homes and businesses.

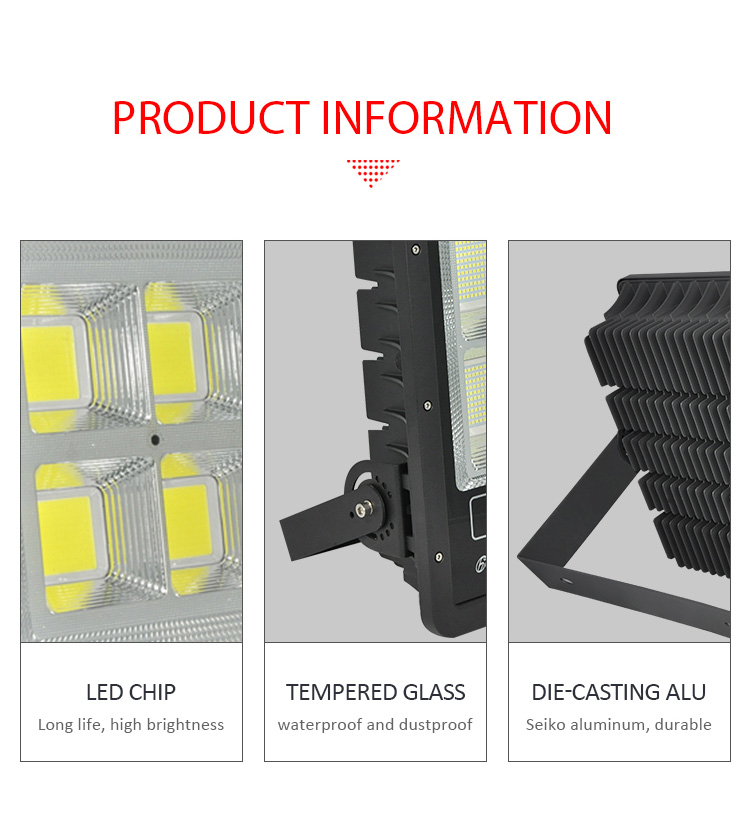

1.Die casting -aluminium housing with corrosion resistant and
rust resistant power coated finish. And with IP66 protection, they can work
fine in terrible outdoor environments.
2.Adjustable angle bracket, easy to find a suitable mounting angle.
3. High lumen 3030or 5050LED chip of Philips, OSRAM, CREE, BRIDGELUX, and
Epistar. No UV or infrared. Higher light efficiency and more stable.
Technical Specifications:
| Mod No. | Voltage | Power | Size | Light out | Efficency | CRI | Beam angle | Light Source | Driver | CCT | ||
| V | W | mm | lm | lm/W | Ra≥ | ° | type | Chip QTY | Isolate | PF＞ | K | |
| TSL-FL012/50 | AC100-265V | 50 | 295*265*68 | 4000 | 80-100 | 70 | 60 | COB | 1 PC | Isolated | 0.9 | 6000-6500 |
| TSL-FL012/100 | AC100-265V | 100 | 345*315*100 | 8000 | 80-100 | 70 | 60 | COB | 2 PCS | Isolated | 0.9 | 6000-6500 |
| TSL-FL012/200 | AC100-265V | 200 | 410*370*105 | 16000 | 80-100 | 70 | 60 | COB | 4 PCS | Isolated | 0.9 | 6000-6500 |
| TSL-FL012/300 | AC100-265V | 300 | 490*475*107 | 24000 | 80-100 | 70 | 60 | COB | 6 PCS | Isolated | 0.9 | 6000-6500 |
| TSL-FL012/400 | AC100-265V | 400 | 595*475*110 | 32000 | 80-100 | 70 | 60 | COB | 8 PCS | Isolated | 0.9 | 6000-6500 |
| TSL-FL012/500 | AC100-265V | 500 | 705*475*117 | 40000 | 80-100 | 70 | 60 | COB | 10 PCS | Isolated | 0.9 | 6000-6500 |
| TSL-FL012/600 | AC100-265V | 600 | 805*475*120 | 48000 | 80-100 | 70 | 60 | COB | 12 PCS | Isolated | 0.9 | 6000-6500 |
